STC SA2628WE

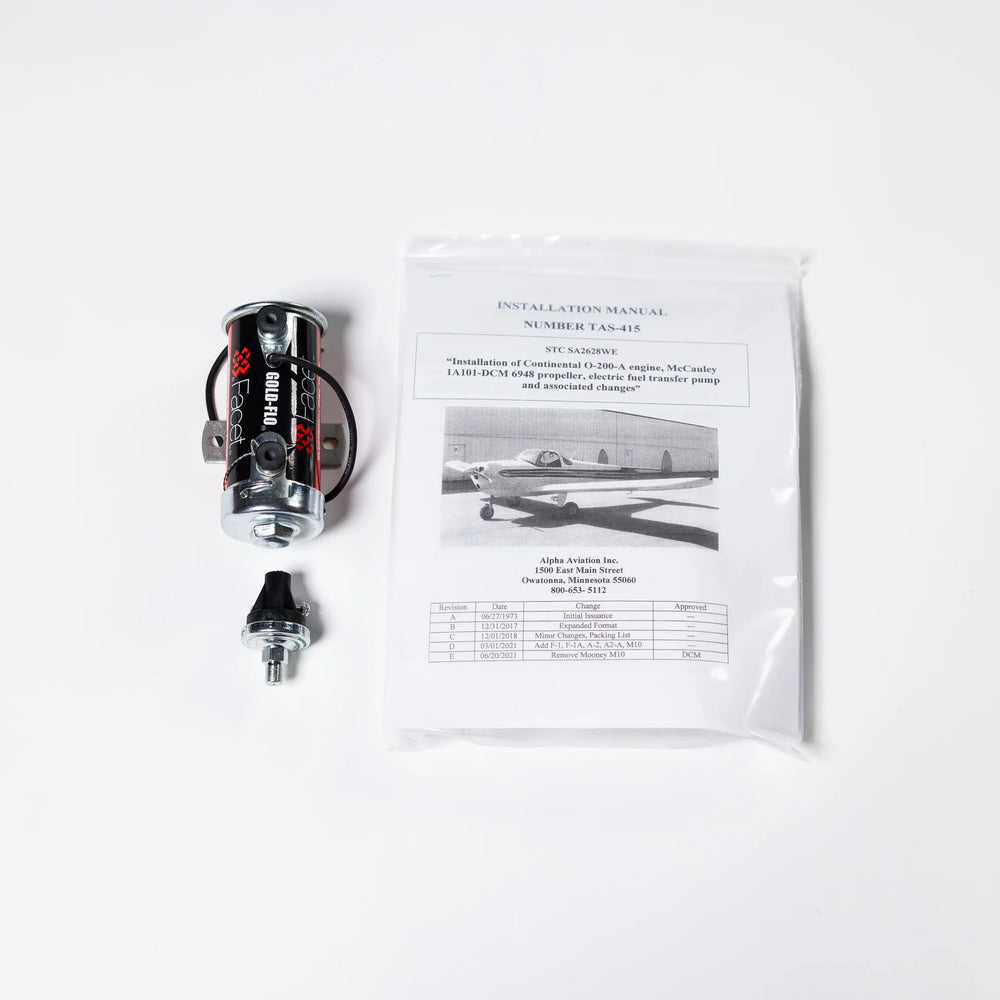

Documentation Packages & PMA Approved Hardware Kit Includes:
Fuel Pump, Pressure Switch & Miscellaneous items required to accomplish the fuel system modification.
The TCM O200A engine brings with it numerous benefit that include increased power of up to 30%, a modern design that is in current production, a stronger crankcase, improved motor mounts; for smooth operation and the reliable Marvel Schebler MA -3SPA carburetor; which is designed with an accelerator pump for easier starting and lower maintenance.
The engine, propeller and associated hardware items will remain the responsibility of the installer in the interest of allowing the maximum procurement flexibility; as the STC permits the use of new, rebuilt or continued time components to accomplish the TCM O200A engine installation.
During the certification process the previously approved installation instructions and drawings were updated. Among the items changed are the simplification of the right front baffle rework, a wiring change that allows the RED electric fuel pump warning light to glow at any time that power is up in the aircraft and fuel is not flowing to the header tank, the development of an FAA approved Aircraft Flight Manual Supplement (AFMS) to enhance safety and FAA approved Instructions for Continued Airworthiness (ICA) to insure all maintenance tasks are identified.
Alpha Aviation Inc. will continue to support current STC SA2628WE holders with legacy forms, manuals and information sheets; subject to a nominal document fee and postage.
Installation Overview: Ercoupe O200A Engine Upgrade STC
ICA: Ercoupe O200A Engine Upgrade Instructions for Continued Airworthiness
Optional Items: AAI-W23G10 Circuit Breaker 10A for the “TAS-415-3B” Option. See installation overview AAI-SPB01 Push Button Starter Switch for the “A48” Engine. See installation overview
FUEL PUMP PAD COVER w/gasket - if you are unable to source a fuel pump pad cover Alpha Aviation has the ability to produce one by your request. The purchaser will be required to review the resources available in our resources section (fuel pump pad cover resource documents) and, after determining that the information is complete and correct, provide Alpha Aviation with an email request that we fabricate the part at their direction. At that time Alpha Aviation will fabricate the part, ready for the purchaser to complete an inspection and apply any needed corrosion protection and/or finish as an Owner Produced Part. Cover part #658312 (formerly part # 533965). Gasket part #SA5306452.
