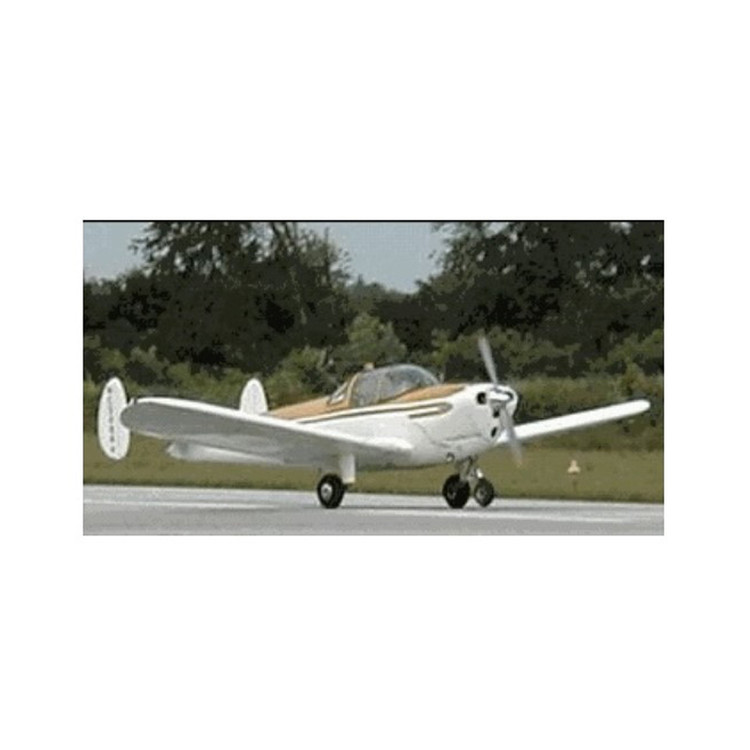

Ercoupe Wing Mounted Landing Light Kit SMK 101 - STC SA1097GLAdd to Wishlist
STC SA1097GL SINGLE LAMP LANDING LIGHT KIT (SMK 101)
Approved Models: UNIVAIR 415-C, 415-CD, 415-D, E, G, F-1, F-1A, A-2, A2-A, M10
STC SA1097GL SINGLE LAMP LANDING LIGHT KIT (SMK 101) authorizes the installation of a single landing light in the leading edge of either or both wings.
This landing light installation replaces the MLG fairing mounted light assemblies, if installed.
This installation reduces drag, provides a broader light beam and accommodates various PAR36 Incandescent – Halogen – Quartz – LED bulbs.
It can be easily modified with the addition of a Landing Light Flashing System for increased inflight safety.
The installation of kit SMK 101 is made at the fourth rib bay inboard of the wing tip bow and is accomplish by creating the prescribed opening in the leading edge.
The landing light back plate and bulb mount is installed in the wing bay as a unit; the landing light frame and lens is furnished as an assembly and installed to finish the installation with six stainless steel screws.
The kit includes a circuit breaker switch, wire, clamps and detailed instructions – the landing light bulb is not included due to there being several types to choose from.
